TwoTrees

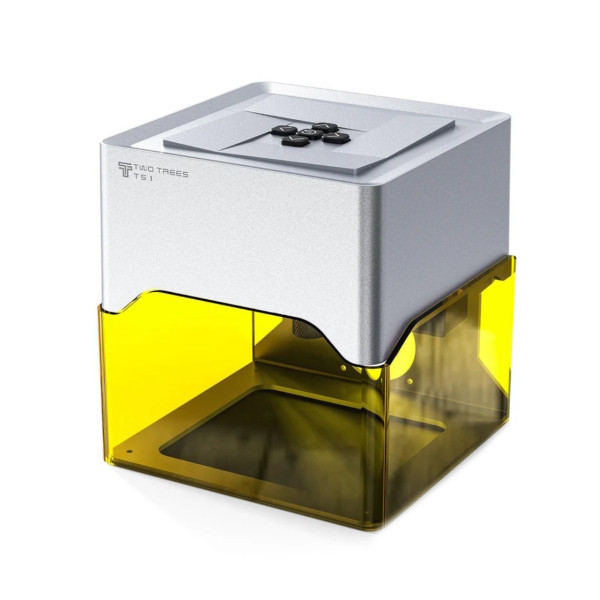

TwoTrees TS1 Mini 3W
Pocket-sized adjustable-focus diode laser for small hobby engraving projects.
- Free shipping
- 2-year warranty
- Secure payment
Description
The TS1 Mini is an ultra-compact entry point into laser engraving: a lightweight, adjustable-focus diode module housed in an injection-molded and aluminium body, driven by LightBurn, LaserGRBL or the MKSLaser mobile app. It comes with a complimentary pair of laser safety goggles and is small enough to carry anywhere, making it ideal for keychains, coasters, slate and leather tags, and first laser projects without the price of a full-size rig. The open frame design keeps the machine light and portable, while the manual focus ring lets you dial in sharp detail on flat and lightly textured surfaces. Assembly takes only a few minutes out of the box, and the belt-driven XY motion is quiet enough for a desk or shared workspace. It's a sensible first laser for students, gift-makers and small Etsy sellers who want to test the waters before committing to a larger enclosed machine.
Highlights
- Ultra-portable injection-molded + aluminium body
- Manual focus, 25–65 mm range, 0.01 mm accuracy
- Works with LightBurn, LaserGRBL and MKSLaser app
- Includes protective aluminium-plate goggles
Specifications
- Technology
- Diode laser, adjustable focus
- Laser power
- 1.6 W (17.5 W overall system power)
- Engraving diameter
- 80 × 80 mm (0–30 mm object height)
- Focus range
- 25–65 mm, 0.01 mm accuracy
- Max engraving speed
- 3000 mm/min
- Compatible materials
- Wood, paper, leather, stainless steel, plastic
- Software
- LightBurn, LaserGRBL, MKSLaser app
- Power input
- 100–240 V AC, DC 12 V / 2 A output
- Machine dimensions
- 157 × 157 × 167 mm
- Net weight
- 1.03 kg
- Connectivity
- USB, offline via SD
- Frame type
- Open frame, belt-driven XY
- Assembly
- Pre-assembled, plug-and-play setup
- Laser safety
- Includes laser safety goggles
- Warranty
- 12-month manufacturer warranty
