Elegoo

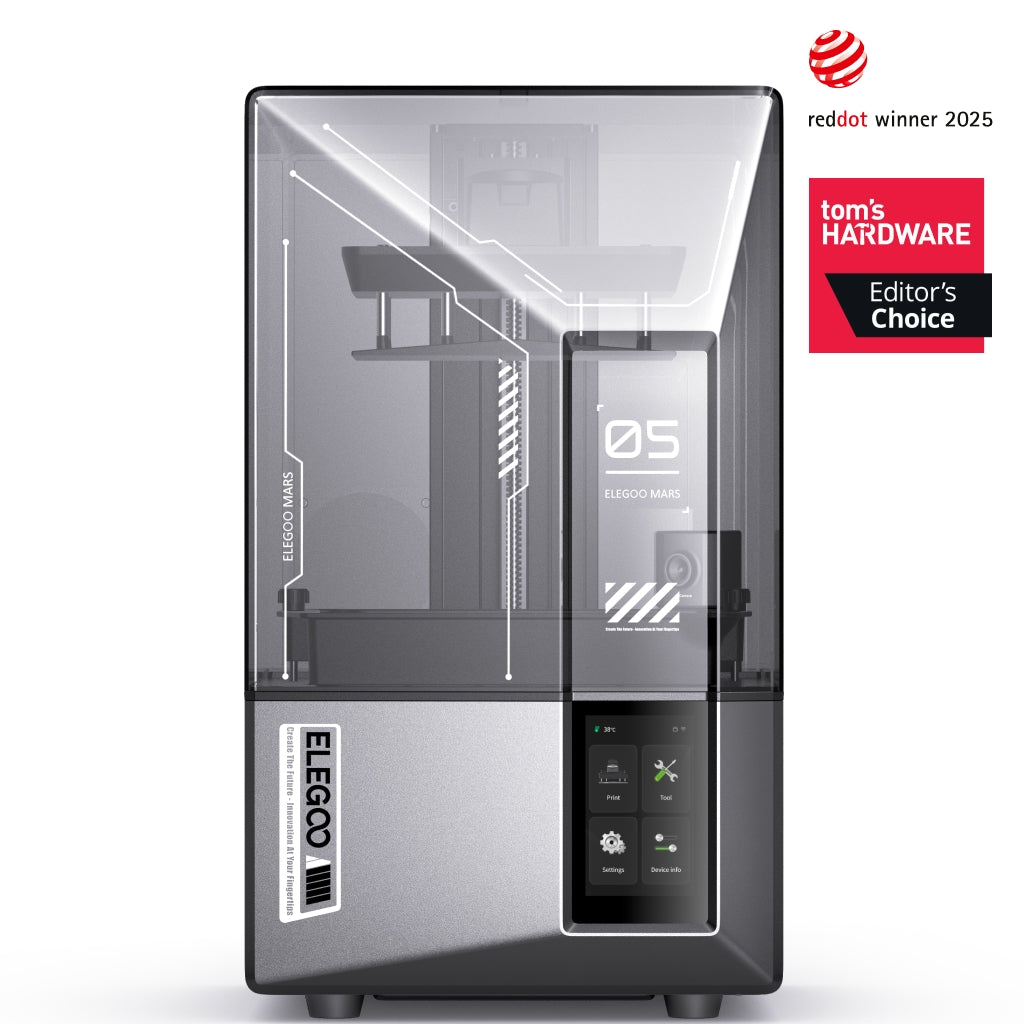

Elegoo Mars 5 Ultra
4.7(241)4.7 out of 5, 241 reviews
MPN: MARS-5-ULTRAEAN: 6975102520011€233.10€259
Compact 9K resin printer with AI camera and fast release film.
In stock
1
- Free shipping
- 2-year warranty
- Secure payment
Description
The Mars 5 Ultra is the maker favourite for detailed miniatures: 9K resolution, an AI camera for failure detection and a self-heating resin vat that keeps viscosity consistent year-round regardless of room temperature. A COB light source spreads curing energy evenly, and the textured fast-release film cuts peel force so layers separate cleanly without pulling detail off the plate. The 9K screen resolves an 18-micron pixel pitch, fine enough to hold crisp edges on small miniature details that would blur on a lower-resolution LCD, and the printer accepts either ChituBox or Lychee Slicer so users already comfortable with one workflow don't need to relearn a new tool.
Highlights
- 9K mono LCD
- AI camera monitoring
- Self-heating vat
- Fast release film
- Even COB light source
Specifications
- Technology
- Resin (MSLA)
- Build volume
- 153 × 77 × 165 mm
- Resolution
- 9K (8520 × 4320)
- Light source
- COB LED array
- Resin vat
- Self-heating, fast-release film
- Camera
- AI failure-detection camera
- Resin type
- 405 nm standard resins
- Connectivity
- USB, Wi-Fi
- Machine dimensions
- 260 × 268 × 451.5 mm
- Net weight
- 8.8 kg
- Max print speed
- Up to 150 mm/h
- XY resolution
- 18 microns
- Power input
- 100–240V AC, 24V 3A output
- Slicing software
- ChituBox, Lychee Slicer
