Anycubic

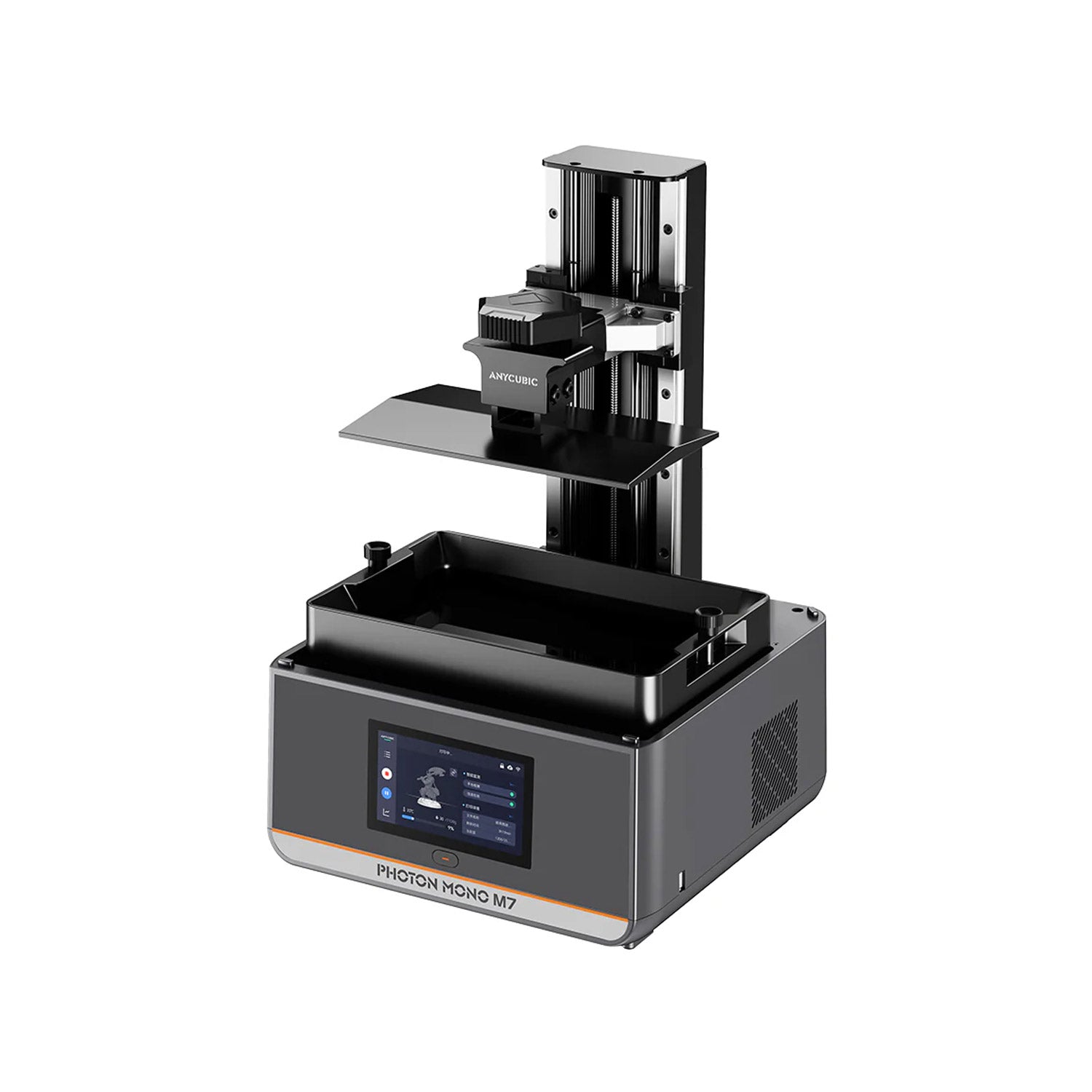

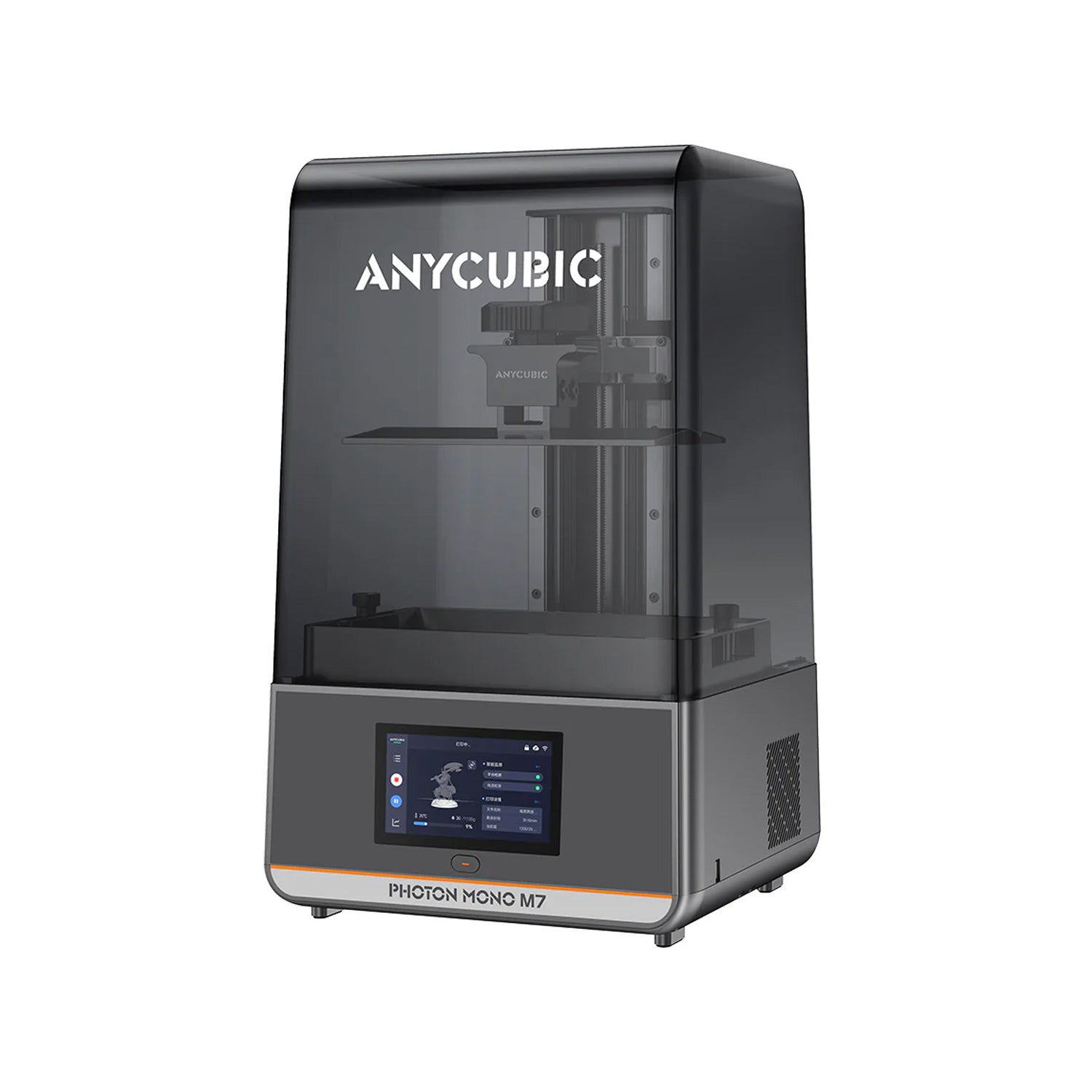

Anycubic Photon Mono M7
High-resolution 14K mono LCD resin printer for crisp detail.
- Free shipping
- 2-year warranty
- Secure payment
Description
The Photon Mono M7 delivers stunning 14K resolution for miniatures, jewellery and detailed prototypes. A ParallelLink matrix light source keeps curing even across the full plate, and the precision-machined, levelling-free Z-axis removes the most fiddly step of resin printing. A colour touchscreen and USB or Wi-Fi transfer make sending jobs simple for makers of any experience level. Its 10.1-inch screen packs a genuine 16.8 × 24.8 micron pixel pitch, which is what actually delivers the 14K claim rather than just a marketing resolution number, and layer thickness can be dialled from 0.01 mm up to 0.15 mm depending on how much detail a job needs versus how fast it has to finish. Anycubic's own Photon Workshop slicer is the officially supported path from model to print, with community slicers like Lychee available for more advanced supports and hollowing workflows.
Highlights
- 14K mono LCD
- Fast curing
- Levelling-free design
- Large 223 × 126 mm plate
- Uniform matrix light source
Specifications
- Technology
- Resin (MSLA)
- Build volume
- 223 × 126 × 230 mm
- Resolution
- 14K (13312 × 5120)
- Light source
- ParallelLink matrix LED array
- Bed levelling
- Levelling-free, fixed Z-axis
- Resin type
- 405 nm standard resins
- Screen
- Colour touchscreen
- Connectivity
- USB, Wi-Fi
- Machine dimensions
- 312 × 315 × 520 mm
- Net weight
- 12 kg
- Max print speed
- Up to 150 mm/h (high-speed resin)
- Power consumption
- 135 W
- Pixel size
- 16.8 × 24.8 microns
- Layer thickness
- 0.01–0.15 mm
- Slicing software
- Anycubic Photon Workshop
